TOPDON TC004
The TC004 is a handheld thermal camera that measures a wide range of temperatures, from -20°C to 350°C (-4°F to +662°F), and offers a 12-hour runtime. The high-resolution 256*192 pixel infrared camera allows you to say goodbye to blurry images. The tool is ready for analysis with the standalone and the PC modes, enabling users to project and upload images from the TC to their PC.

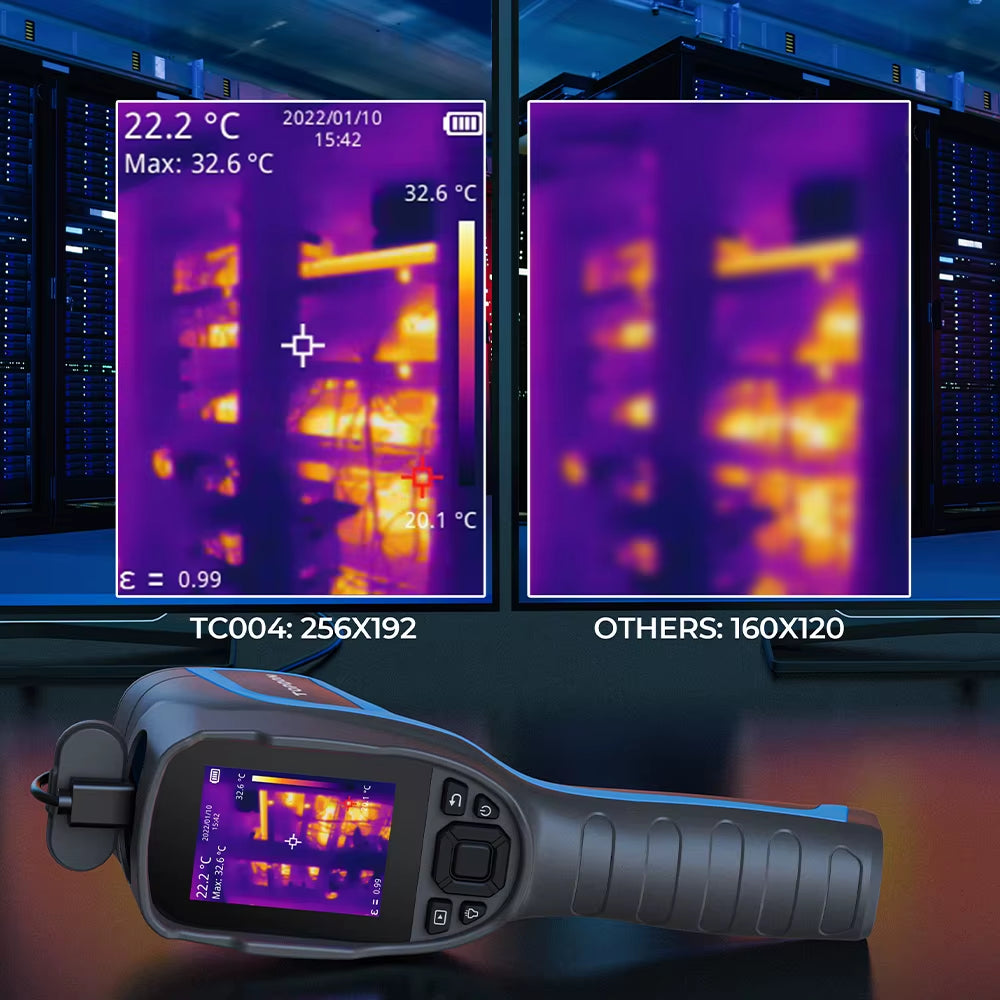

High Resolution & Thermal Sensitivity
The TC004 features a high-resolution thermal camera with a resolution of 256x192. This allows users to capture more details and
say goodbye to blurry images.
A high thermal sensitivity of 0.05℃ allows the TC004 to distinguish between tiny temperature differences.
say goodbye to blurry images.
A high thermal sensitivity of 0.05℃ allows the TC004 to distinguish between tiny temperature differences.

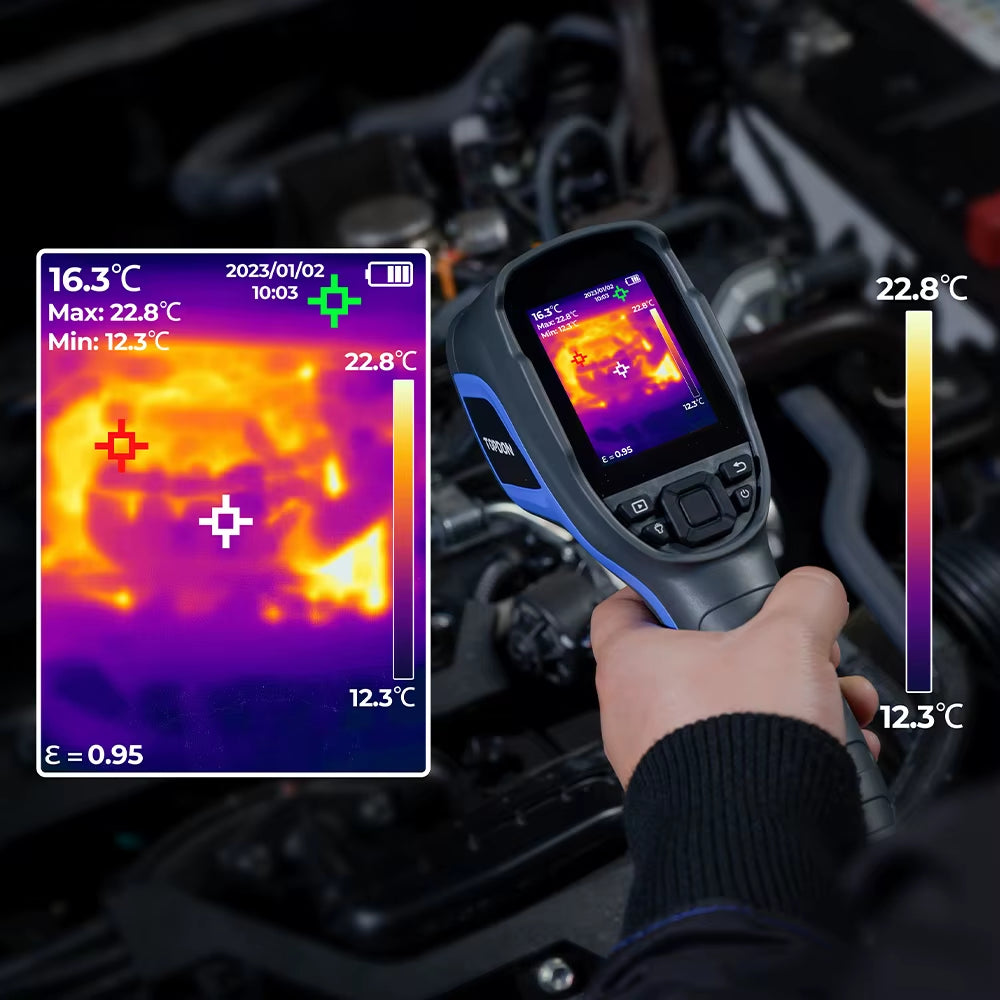

Three Measurement Modes & Auto-Detection
The TC004 has three different measurements to detect center, hot and cold spots.
The automatic detection feature allows users view temperature differences more visually.
Wide FOV
The TC004 also features a wide 56° FOV for to easily capture more objects in view. There is also no need to adjust focal length.

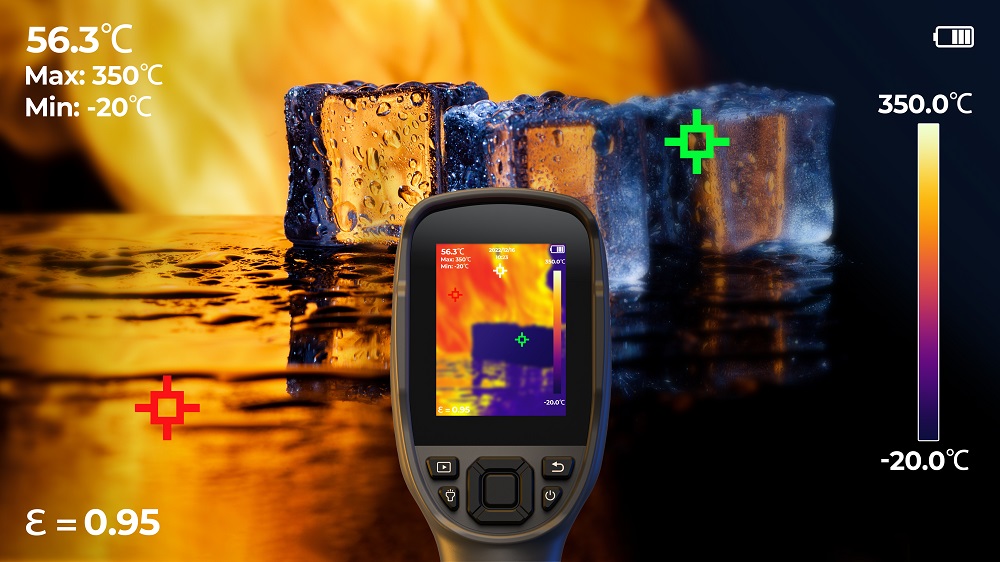

Wide Measurement Range & Accuracy
The TC004 features a wide temperature measurement range of -20℃ - +350℃. It can also measure temperatures with ±2℃ accuracy for precise temperature measurements.
NETD of this high-precision infrared sensor is less than 40mK,measurement accuracy is 0.1 degree, and error is less than 2%. This is to ensure the upmost accurate thermal readings.
NETD of this high-precision infrared sensor is less than 40mK,measurement accuracy is 0.1 degree, and error is less than 2%. This is to ensure the upmost accurate thermal readings.
PC Image Analysis and Instant Projection

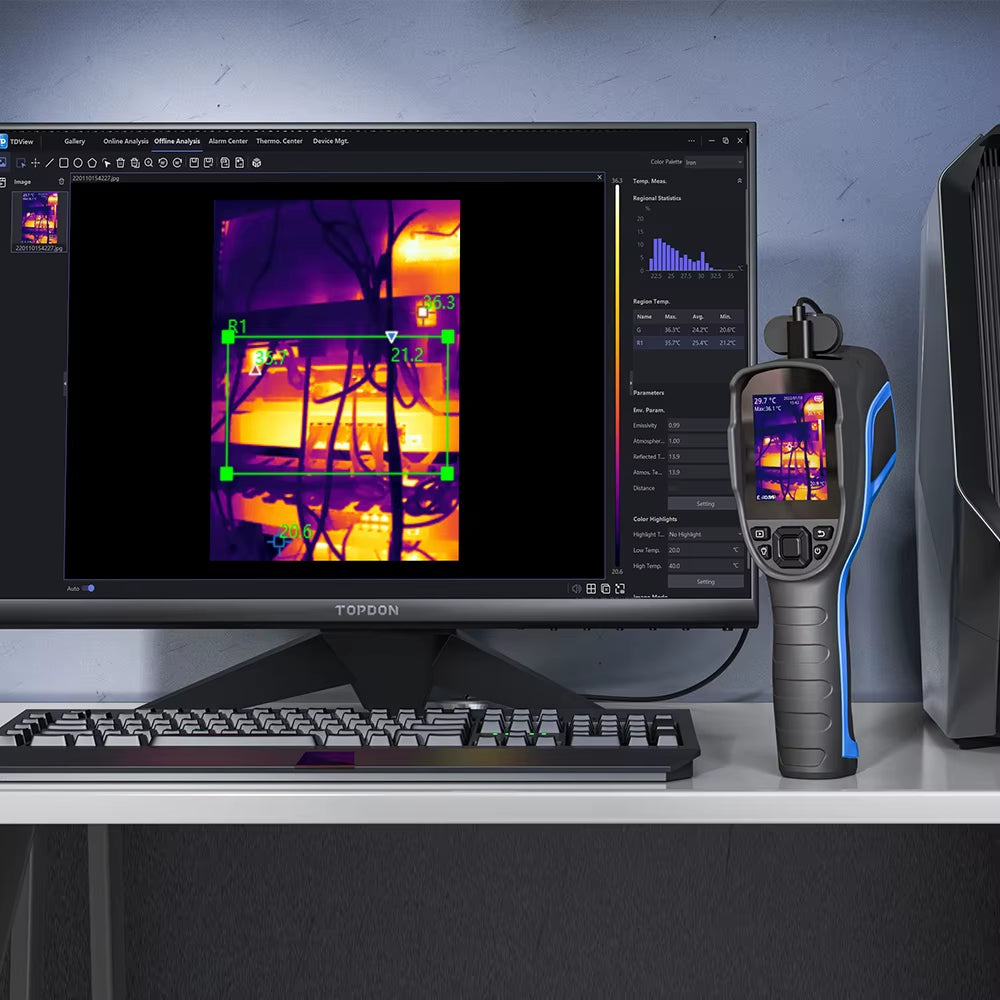

Professional analysis software allows users to easily save and share diagnostic data on a PC. The TC004 also supports screen
projection on a PC as well.
projection on a PC as well.
One-Day Runtime
A powerful integrated battery allows the TC004 to have a 12-hour runtime.
Built-in Fill LED Light
A built-in LED light allows users to record thermal readings without an additional light source.
Compact and Solid Design
IP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.
|
TOPDODN TC004 Specifications
|
|||
|
Display
|
2.8-inch Display
|
Field of View (FoV)
|
52.5°x 39.5°
|
|
IR Resolution (pixels)
|
256*192
|
Focal Length
|
3.2mm
|
|
Temperature Resolution
|
0.1℃
|
LED Light
|
Yes
|
|
Image Frequency
|
20Hz
|
Memory
|
2+16GB Memory Card
|
|
NETD
|
<40mK
|
Battery Life
|
12h
|
|
Object Temperature Range
|
-20 to 350℃
|
Charging Time
|
4h
|
|
Measurement Accuracy
|
±2℃ or ±2%
|
Waterproof Rating
|
IP54
|
|
Spectral Range
|
8 – 14μm
|
Drop/Shock/Vibration
|
Drop: 2m; Shock: 25g(IEC 60068-2-27); Vibration: 2.5g(IEC60068-2-6)
|
|
Size&Weight
|
275*160*120mm (10.83*6.30*4.72 inch)
1.050kg
|
Battery Type
|
5000mA Built-in Battery
|
|
Certification
|
Measurement Report/UN38.3/DGM/CE/FCC/RoHS/KC
|
OEM/ODM Service
|
Support OEM/ODM Services,custom logo,color,packaging,app.Feel Free to contact us!
|
|
Appliciation
|
Household HVAC Inspection/House Inspection/Find Water Damage/Find Hidden /Building Weak Current Detection/Building HVAC Inspection/Night Petrol at Park/Electrical Panels Inspection/Night Security Petrol/Searching Animal at night/Residual fire detection and so on..
|
