TOPDON BT200 Portable 12V Battery Tester
TOPDON BT200 Portable 12V Battery Tester
Couldn't load pickup availability
Topdon BT200 Car Battery Tester
Applying the most advanced conductance testing technology, and the reverse polarity protection etc., TOPDON BT200 serves as a 12V~24V Battery Tester to provide technicians with critical information about battery health status, to find battery and charging problems quickly, easily and accurately.
Specifications:
Display.24"LCD
Display Resolution:320-240 Pixels
Cable Reach:.(36.22inches)920 mm
Storage Temperature:-(-4~158*F) 20*C~70*C
Working Temperature-(-4~140F) 20*C~60*C
Dimensions (L·wH):(7·3.72+1.3inches)
178-94.533 mm
Compatibility:
Please be noted that battery type and CCA values(Cold Cranking Amp)marked on the battery labe. Please refer to it before using.
BT200 supports the fllowing types.
1.VRLA/GEL/AGM/EFB
2.Regular Flooded

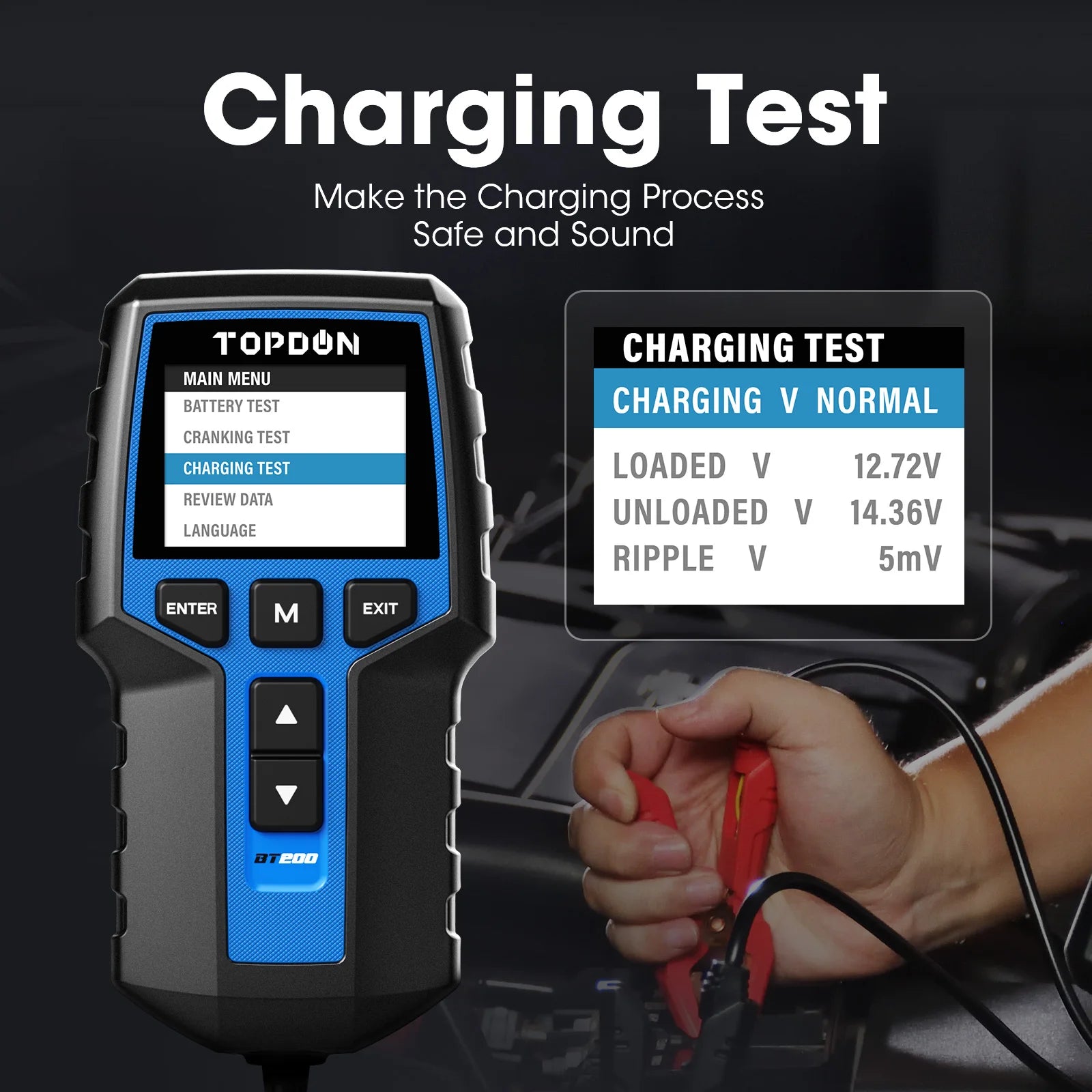

Charging Test
Before Test:
The engine must be ON during test in order to have results.Ensure all electrical accessories and devices remain in the OFF state.
*Turning ON/OFF any electrical accessories in the vehicle during the test willaffect the accuracy of the test result.

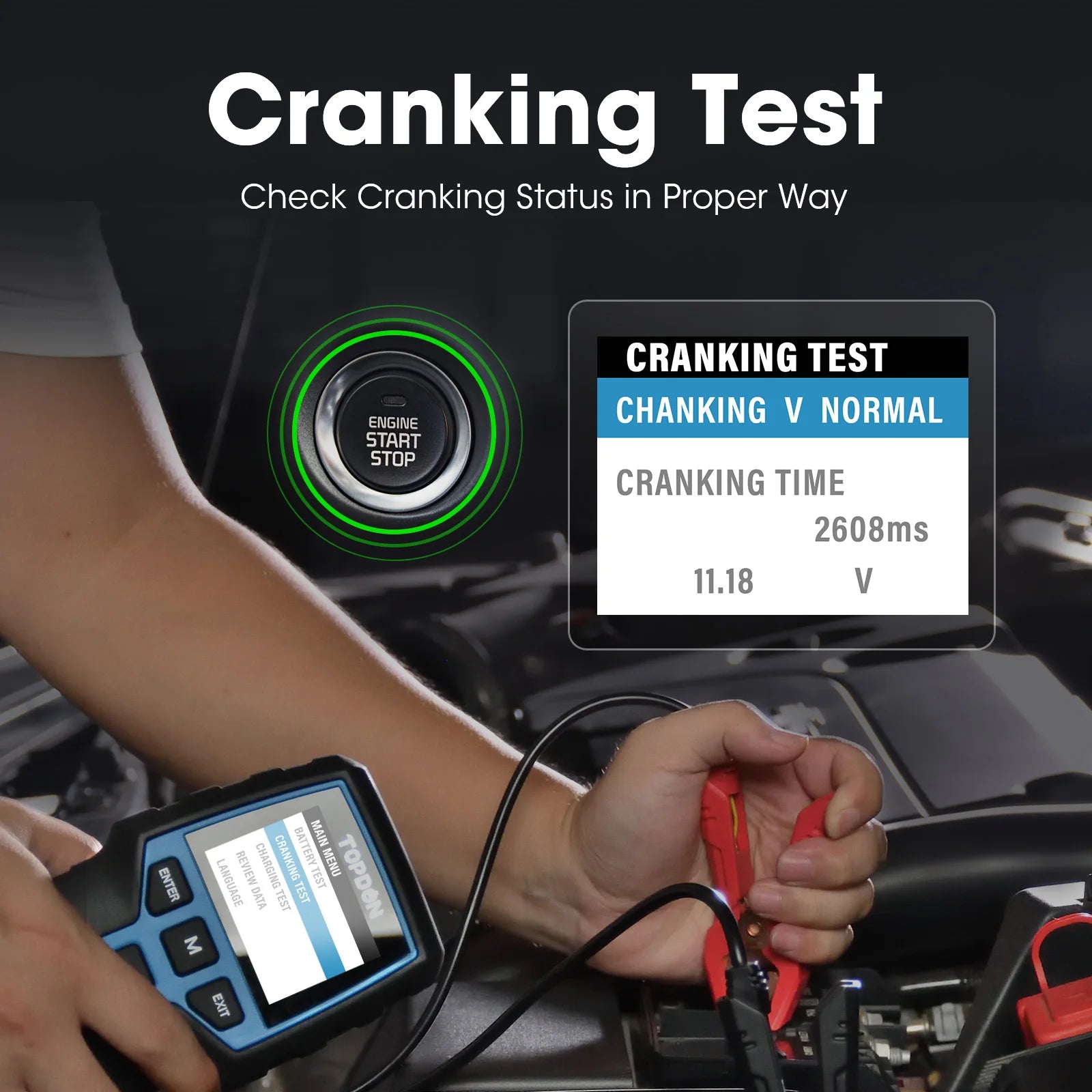

Cranking Test
Before Test:
The engine and allother accessory loads must be off during test in order to have accurate results.

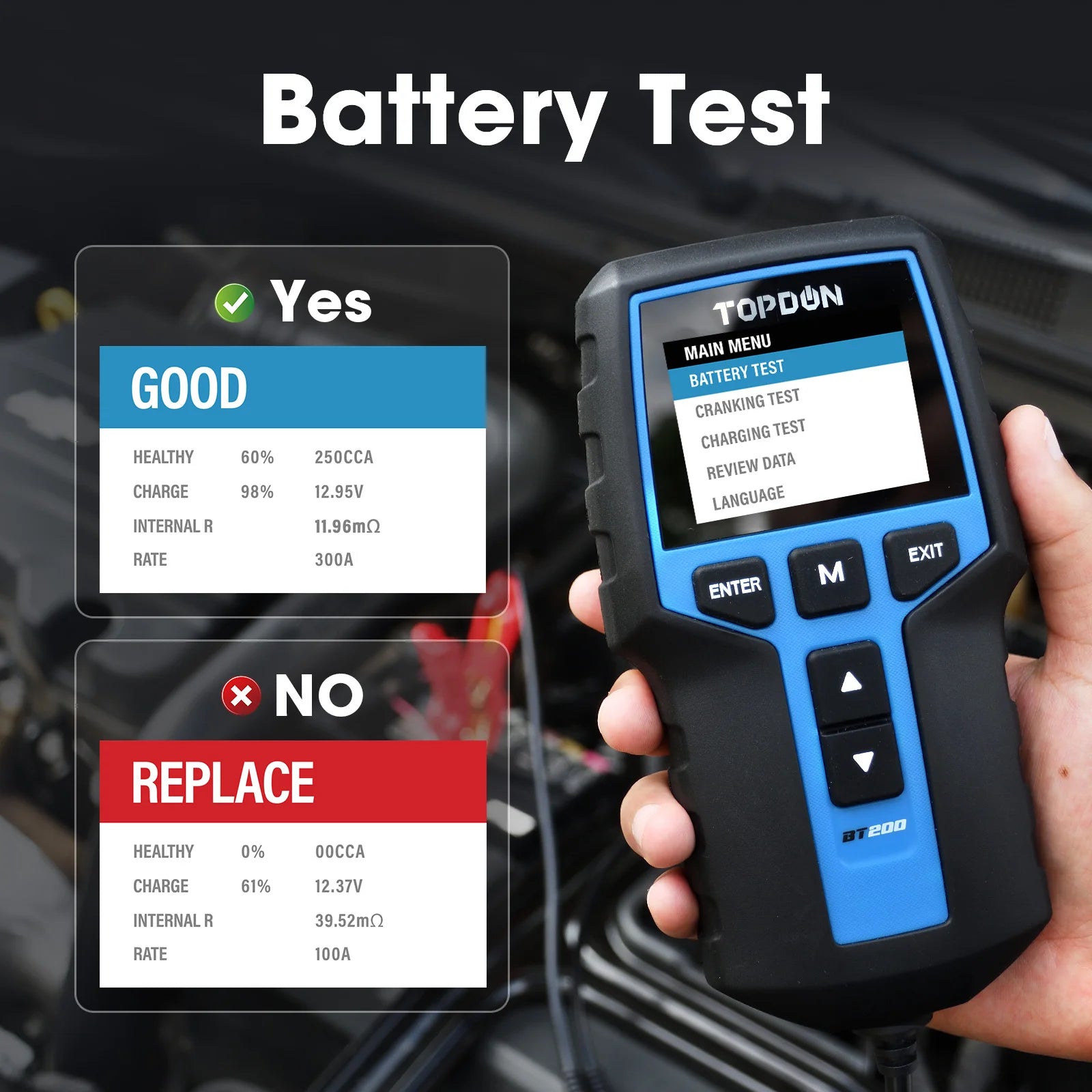

Battery Test：
TOPDON BT200 will test each battery according to the selected actual system standard and rating marked on the battery, to get the accurate results.
Before Test:
The engine and all other accessory loads must be OFF during test in order to have accurate results. Tun on the vehicle headlamps for 2~3 minutes until the battery voltage drops back to normal value if the battery is just fully charged.
Battery System Standard Description And Measuring Range
The battery tester analyzer wiltesteach battry according to the selected system and rating
The Battery Tester can perform test on batteies ratedwithin 100-2000CA/30Ah-220AH
